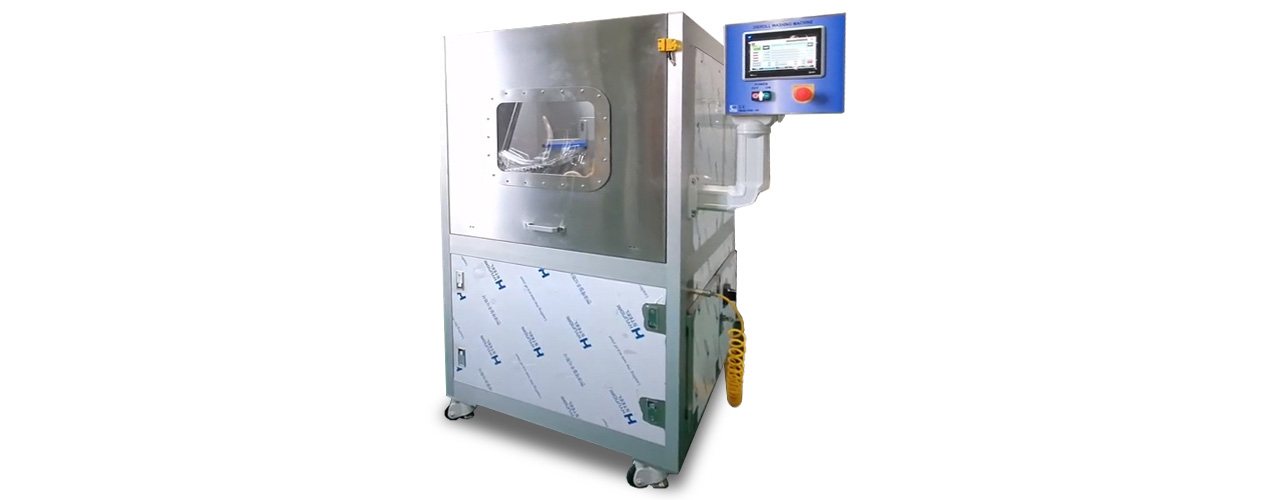

Auto Die roll Washing Machine

Easy to Clean, Quick Cleaning Duration,
Outstanding Performance, Best Quality, Automatic System

Highlights
  • Compatible with other’s Encapsulation Machine
  • Simple and convenient control system by high quality, advanced Touch Screen Panel System
  • Capable of customizing the brush according to the Die roll (Thickness, Length, Position)
  • Capable of time adjustment for cleaning as well as managing separately
  • Capable of cleaning and handling both “Oil” and “Paste” materials.




Specification
Die Roll Size 200mm(dia) x 300mm(dia)
150mm(dia) x 250mm(dia)
Dimension (LxWxH) 1380 x 900 x 1700
Weight 400Kg
Required Power 3.0Kw
Detergent Supply Max 60cc / min
Water Flow 44 liters/min, 5~6bar
Option Die Roll Trolley
Die Roll Jig
