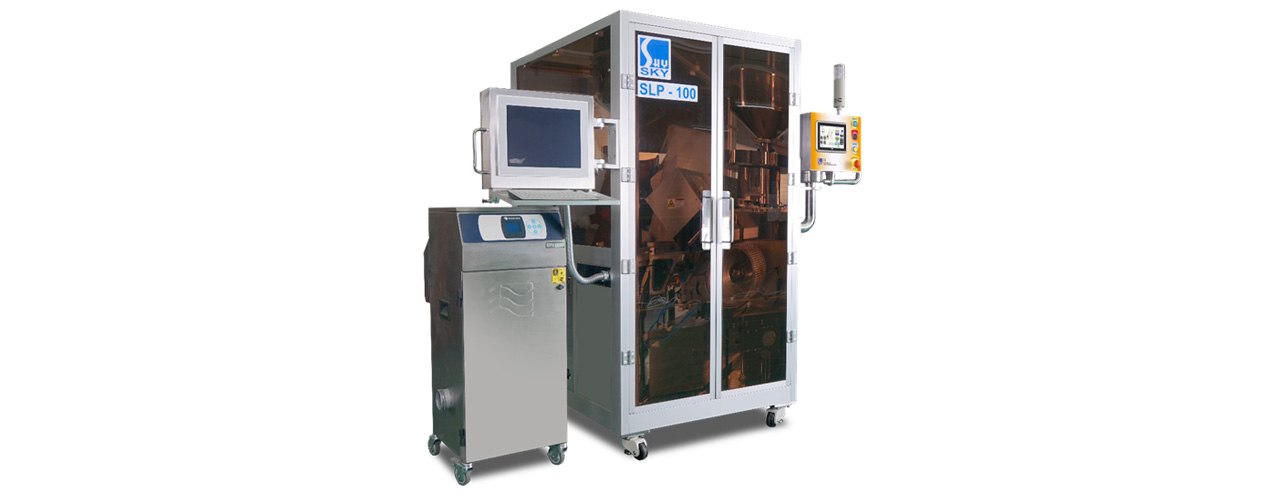

Auto Laser Printing Machine

Suitable for Pharmaceutical & Supplementary Products, Outstanding Performance, Best Quality, Automatic System

Highlights
  • Auto servo motor driving system
  • Easy to replace change parts
  • Output : Oval#10 – 200,000/hour
  • Output : Oblong#20 – 100,000/hour
  • Softgel & Hard capsule available
  • Various color capsules




Specification
Hopper Size Ø500mm × 250mm (46 Liter)
Control HMI System
Electric spec 220V/380V/440V
50HZ/60HZ
3PH
Required power 3Kw (Approx)
Main Motor(SERVO) 0.2Kw × 1 Motor
Laser Power 30w laser
Counting speed Min. 1,000 ~ Max. 3,500 softgel/min
Min. 60,000 ~ Max.210,000 softgel/hr
Printing capacity OV#10 : max. 210,000 EA / HR
OB#20 : max. 100,000 EA / HR
(Different capacity depends on size of printing size and type)
Air Consumption 10 Liter/min, 6 Kgf/㎠
Dimension 1760mm × 1220mm × 1870mm
Weight 500Kg (Approx)
Material SUS 316 for Contact area
