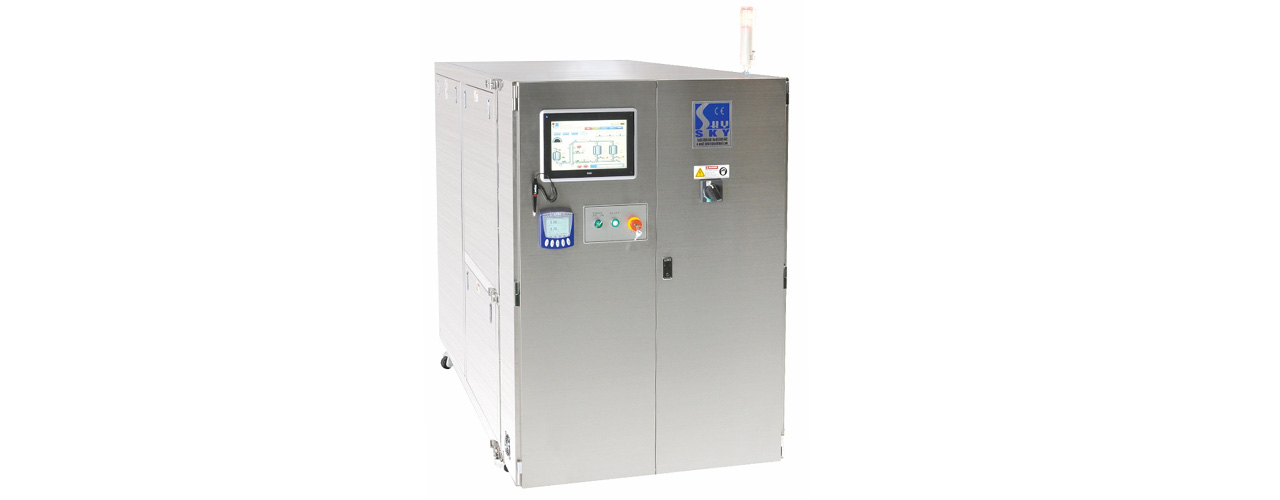

CIP System

Time-Saving, Outstanding Performance, Best Quality, Automatic System

Highlights
  • Low consumption of energy and water
  • 20% Reduction in cleaning time gives an extra hour of production time to each day
  • Advanced CIP system enables dramatic reductions in trouble shooting time
  • Diagnostic system is easy to use and deliver detailed information on each element of cleaning cycle
  • Detailed operation record is available




Specification
Tank Size Ø750 X 1,142
Control HMI System
Electric spec 220V/380V/415V/440V
50Hz/60Hz, 3PH
Required power 18Kw
Main Motor 4Kw x 2EA
Chemical Motor 0.025 Kw with speed controller x 1EA
Water pipe size 1.5S x 1EA
Drainage pipe size 1.5S x 1EA
Heater 3Kw x 2EA
Maximum capacity 300liter
Compressed Air 10 Liter/min, 6 Kgf/㎠
Dimension 2,145mm(L)X 1,000mm(W) X 1,506mm(H)
Weight 800Kg (Approx,)
Usage Water temperature 70 ~ 90℃
Material SUS 316L for Contact Part
