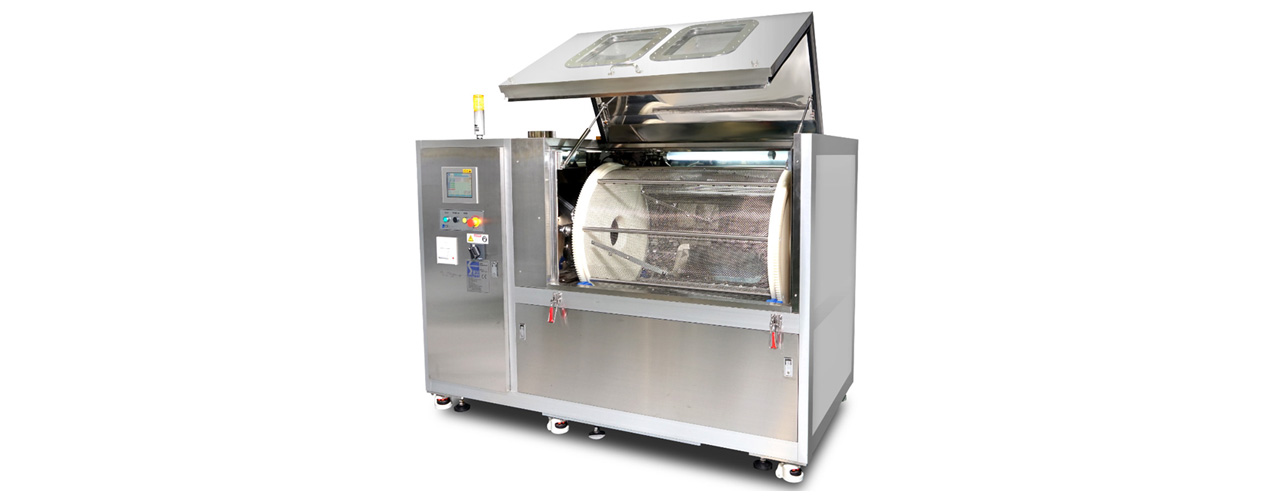

Auto Basket Washing Machine

Easy to Clean, Quick Cleaning Duration,
Outstanding Performance, Best Quality, Automatic System

Highlights
  • Easy Control & Operating & Record System
  • Perfect Cleaning with Detergent
  • Complete Drying
  • Automatic Basket Lifting System




Specification
Basket size Ø730mm X 1,000mm
Control HMI System
Electric spec 220/380/415/440
50Hz/60Hz, 3PH
Required power 10Kw (Approx,)
Main Motor 0.2Kw with Speed controller
Chemical Motor 0.025Kw with Speed controller X 1EA
Fan Motor 4.6Kw
Water Motor 1.64Kw x 2EA
Water 1.5S X 2EA
Drainage 2.5S X 1EA
Compressed Air 10 Liter/min, 6 Kgf/㎠
Dimension 2,020 x 1,170 x 1,415
Weight Approximately 500 Kg
Max. temperature 70 ~ 90℃
Material SUS 304 for Contact Part
