오토 서보 로타리 타입 l     블리스터 포장 기계

Specification

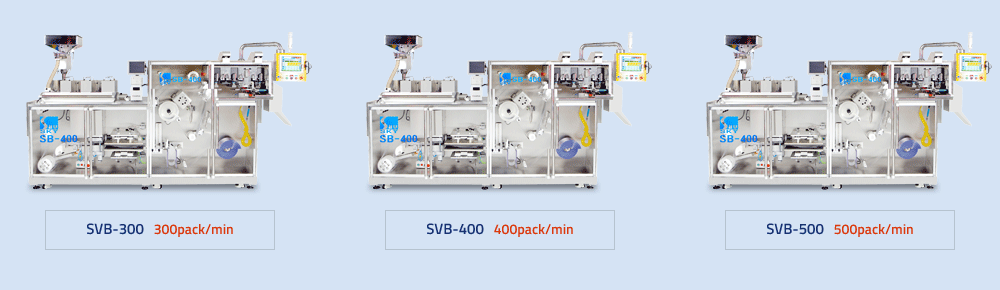

MODEL SVB-300 SVB-400 SVB-500
Output (2-lanes / min); 300 blister 400 blister 500 blister
Forming area 180 X 190 180 X 190 180 X 190
Forming depth max. 12mm max. 12mm max. 12mm
Sealing type Rotary Rotary Rotary
Punching speed max. 150 cycles/min max. 200 cycles/min max. 250 cycles/min
Punching length 95mm 95mm 95mm
Reel diameter (Forming material) max. 600 mm max. 600 mm max. 600 mm
Reel diameter (Lib material) max. 250 mm max. 250 mm max. 250 mm
Processable forming materials PVC, PVDC, ACLAR, Al foils, PP PVC, PVDC, ACLAR, Al foils, PP PVC, PVDC, ACLAR, Al foils, PP
Processable lid foils Alu foils, Paper/Alu, etc Alu foils, Paper/Alu, etc Alu foils, Paper/Alu, etc
Dimension (L x W x H) 3860 X 1220 X 2140 3860 X 1220 X 2140 5250 X 1400 X 2140
Weight 2,600Kg (Approx.) 2,900Kg (Approx.) 3,400Kg (Approx.)
Required power 18Kw (Approx.) 22Kw (Approx.) 23Kw (Approx.)
Electric spec 380~440V, 3-phase, 50/60Hz 380~440V, 3-phase, 50/60Hz 380~440V, 3-phase, 50/60Hz
Air consumption 300 Liters/min, 6~8Kg/㎠ 300 Liters/min, 6~8Kg/㎠ 320 Liters/min, 6~8Kg/㎠
Option Vision system, In-line printer Vision system, In-line printer Vision system, In-line printer



Advantages

  • Huge saving PVC-ALU materials
  • No scrap in the middle between pack and pack
  • Easy and fast changing parts (within 20 minutes)
  • Auto servo motor driving system
  • Balcony type European concept design
  • High speed production
  • PC control system
  • Platen sealing of various material
  • Central operation with touch screen
  • GMP compliant design
  • Options available
    - Various tablet feeder
    - CFR21 parts 11
    -Vision inspection system
    - Eyemark print alignment
    - Perforating system
