오토 서보 평판식 l     블리스터 포장 기계

Specification

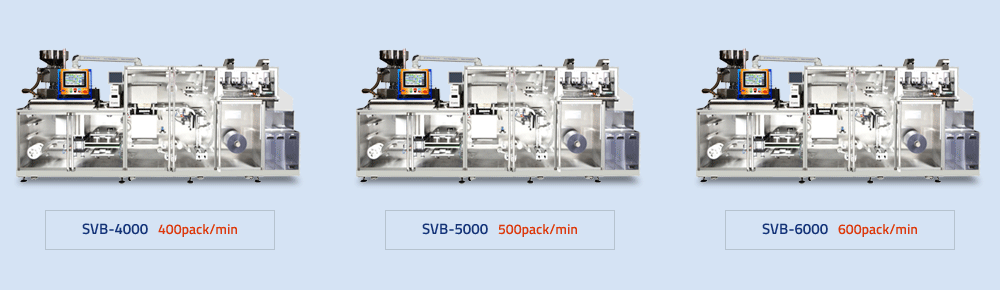

MODEL SVB-4000 SVB-5000 SVB-6000
Output (2-lanes / min); 400 blister 500 blister 600 blister
Forming area 180 X 190 180 X 190 180 X 190
Forming depth max. 12mm max. 12mm max. 12mm
Sealing type platen platen platen
Punching speed max. 200 cycles/min max. 250 cycles/min max. 300 cycles/min
Punching length 95mm 95mm 95mm
Reel diameter (Forming material) max. 600 mm max. 600 mm max. 600 mm
Reel diameter (Lib material) max. 250 mm max. 250 mm max. 250 mm
Processable forming materials PVC, PVDC, ACLAR, Al foils PVC, PVDC, ACLAR, Al foils PVC, PVDC, ACLAR, Al foils
Processable lid foils Alu foils, Paper/Alu, etc Alu foils, Paper/Alu, etc Alu foils, Paper/Alu, etc
Dimension (L x W x H) 4660 X 1310 X 2140 5250 X 1480 X 2140 5600 X 1480 X 2140
Weight 3,800Kg (Approx.) 4,100Kg (Approx.) 5,600Kg (Approx.)
Required power 24Kw (Approx.) 25Kw (Approx.) 29Kw (Approx.)
Electric spec 380~440V, 3-phase, 50/60Hz 380~440V, 3-phase, 50/60Hz 380~440V, 3-phase, 50/60Hz
Air consumption 400 Liters/min, 6~8Kg/㎠ 420 Liters/min, 6~8Kg/㎠ 440 Liters/min, 6~8Kg/㎠
Option Vision system, In-line printer Vision system, In-line printer Vision system, In-line printer



Advantages

  • Huge saving PVC-ALU materials
  • No scrap in the middle between pack and pack
  • Easy and fast changing parts (within 20 minutes)
  • Auto servo motor driving system
  • Balcony type European concept design
  • High speed production
  • PC control system
  • Platen sealing of various material
  • Central operation with touch screen
  • GMP compliant design
  • Options available
    - Various tablet feeder
    - CFR21 parts 11
    -Vision inspection system
    - Eyemark print alignment
    - Perforating system
