구동 연질 캡슐 성형기l     연질 캡슐 성형기 라인

Specification

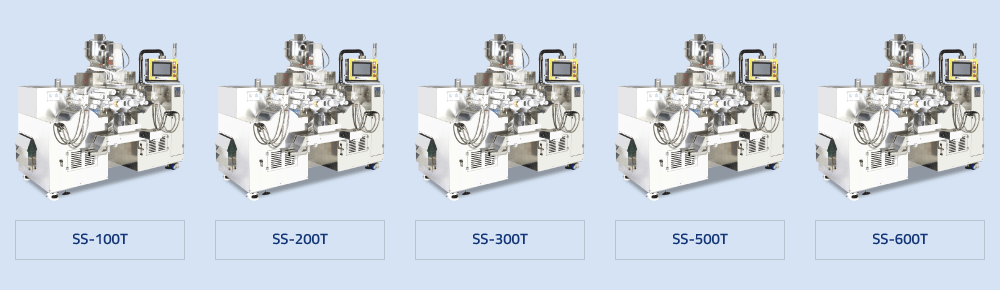

MODEL SS-100T SS-200T SS-300T SS-500T SS-600T
RPM 3.5 RPM 3.5 RPM 3.5 RPM 6 RPM 6 RPM
Shape Die roll size 150mm(dia) X 250mm(L) 150mm(dia) X 300mm(L) 200mm(dia) X 300mm(L) 150mm(dia) X 250mm(L) 200mm(dia) X 300mm(L)
6(inch) X 10(inch) 6(inch) X 12(inch) 8(inch) X 12(inch) 6(inch) X 10(inch) 8(inch) X 12(inch)
Oblong 5 94,710 111,930 150,150 162,360 257,400
Oblong 9.5 77,490 94,710 127,050 132,840 217,800
Oblong 11 75,600 92,400 122,430 129,600 209,880
Oblong 14 63,840 79,800 107,100 109,440 183,600
Oblong 16 62,160 69,930 92,610 106,560 158,760
Oblong 18 52,920 68,040 88,830 90,750 152,280
Oblong 20 51,450 66,150 85,050 88,200 145,800
Oblong 22 48,510 62,370 83,160 83,160 142,560
Oblong 24 47,040 60,480 79,380 80,640 136,080
Oval 3 137,760 172,200 231,000 236,160 396,000
Oval 5 126,000 151,200 204,120 216,000 349,920
Oval 7.5 101,010 124,320 168,000 173,160 288,000
Oval 10 88,200 110,250 144,900 151,200 248,400
Round 1 172,200 206,640 277,200 295,200 475,200
Round 2 172,200 206,640 272,160 295,200 466,560
Round 5 135,660 171,360 231,840 232,560 397,440
