오토 서보 기계l     연질 캡슐 성형기 라인

Specification

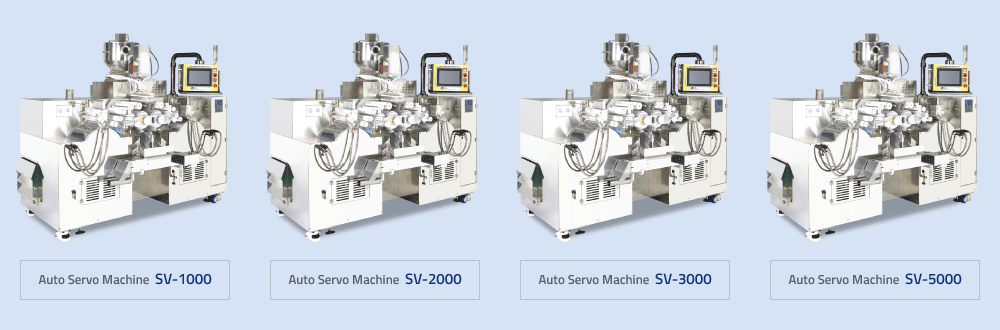

MODEL SV-1000 SV-2000 SV-3000 SV-5000
RPM 7 RPM 6 RPM 6 RPM 6 RPM
Shape Die roll size 150mm(dia) X 250mm(L) 150mm(dia) X 320mm(L) 200mm(dia) X 300mm(L) 200mm(dia) X 350mm(L)
6(inch) X 10(inch) 6(inch) X 12(inch) 8(inch) X 12(inch) 8(inch) X 14(inch)
Oblong 5 189,420 191,880 257,400 297,000
Oblong 9.5 154,980 162,360 217,800 257,400
Oblong 11 151,200 158,400 209,800 248,040
Oblong 14 12,680 136,800 183,600 220,320
Oblong 16 124,320 119,880 158,760 194,040
Oblong 18 105,840 116,640 152,280 186,120
Oblong 20 102,900 113,400 145,800 162,000
Oblong 22 97,020 95,040 142,560 158,400
Oblong 24 94,080 103,680 136,080 151,200
Oval 3 275,520 280,440 396,000 455,400
Oval 5 252,000 259,200 349,920 408,240
Oval 7.5 202,020 213,120 288,000 342,000
Oval 10 176,400 189,000 248,400 298,080
Round 1 344,400 354,240 475,200 554,400
Round 2 327,600 336,960 457,920 534,240
Round 5 249,480 261,360 348,480 411,840



Advantages of Futo Servo Softgel Machine

  • Auto Die roll zero point control
    : No need operator set manually,
    push the touch screen then machine set zero point automatically by Servo motor!
  • Auto fill weight adjustment control
    : No need to control using manual jog,
    just put the value on touch screen then machine adjust filing weight automatically by Servo motor!
  • Auto injection timing adjustment control
    : Each left and right die roll is controlled by individual Servo motor
    that is why no need timing gear and automatic injection timing adjustment is available!
  • Auto recipe memory system(more 100,000 recipes)
    : Very advanced HMI is applied so almost unlimited recipe memory is available!
  • Auto production parameter memory system
    : all parameter including DIE ROLL ZERO POINT SETTING can be set automatically by just calling saved recipe!
  • Huge output
  • Auto servo motor driving system-Germany
  • No need time gear
  • Auto gelatin thickness adjustment (Option)
  • Precise fill weight
  • Excellent sealing rate
