전체 계수기 라인 l     멀티 계수기 병 포장 라인

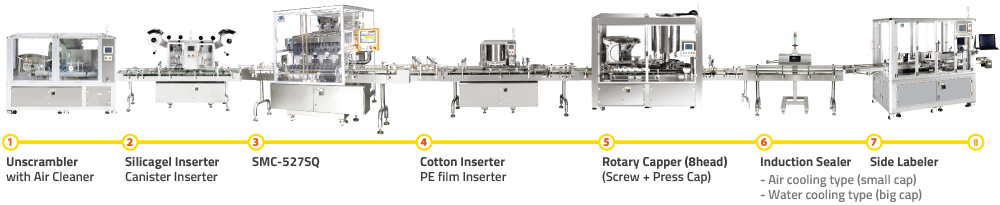

SMC-527SQ 200BPM(100Counts)

Specification

MODEL SMC-527SQ
Track Qty 32 (8 X 4H)
Head Qty 4
Max Counting Speed 200 BPM (100 Counts)
Contact Material SUS 316L
Dimension 3,000 X 1,837 X 1,976
Weight 1,800Kg (Approx,)
Required Power 2.5Kw (Approx,)
Electric Spec 220V/380V, 50HZ/60HZ, 3PH
Counting Speed Max. 20,000 tablets/min
Max. 200 bottles/min
Product Size Tablet diameter 3~20mm
#00~#5 Capsule & Softgel
Type 32 Track
Hopper Capacity 70 Liter (Approx,)
Bottle Diameter 30~110mm
Bottle Height adjustment 50~180mm
Air Consumption 200 Liters/min, 6kg/㎠
Optional Item over 180mm high Bottle

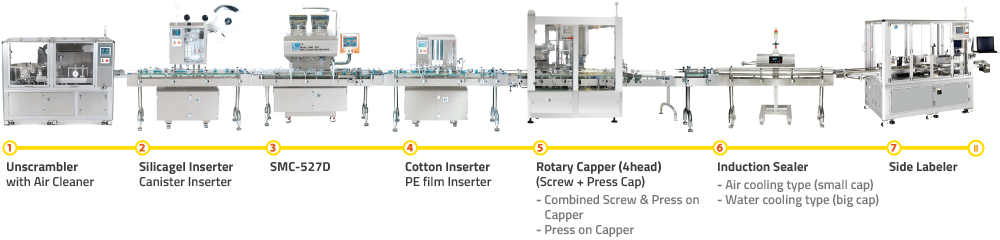

SMC-527SD 120BPM(100Counts)

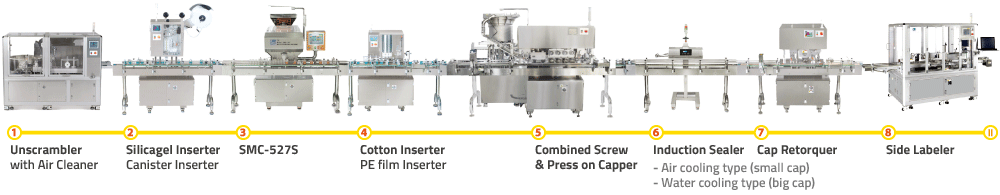

SMC-527S 60BPM(100Counts)




Specification

MODEL SMC-527D SMC-527S SMC-527B SMC-527QC
Track Qty 24 (12 X 2H) 24 (12 X 2H) 24 (12 X 2H) Quality Control
Head Qty 2 1 1.2
Max Counting Speed 120 BPM (100 Counts) 60 BPM (100 Counts) 10 BPM (100 Counts)
Contact Material SUS 316L SUS 316L SUS 316L SUS 316L
Dimension 3,000 X 1,730 X 2,030 2,400 X 1,570 X 2,030 700 X 850 X 8000 690 X 2900 X 820
Weight 1,600Kg (Approx,) 1,000Kg (Approx,) 130Kg (Approx,) 900Kg (Approx,)
Required Power 1.6Kw (Approx,) 1Kw (Approx,) 0.5Kw (Approx,) 0.4Kw (Approx,)
Electric Spec 220V/380, 50Hz/60Hz, 3PH 220V/380, 50Hz/60Hz, 3PH 220V/380, 50Hz/60Hz, 3PH 220V/380, 50Hz/60Hz, 3PH
Counting Speed Max. 12,000 tablets/min
Max. 120 bottles/min		 Max. 6,000 tablets/min
Max. 60 bottles/min		 Max. 1,400 tablets/min
Max. 10 bottles/min		 Max. 700 tablets/min
Max. 5 bottles/min
Product Size Tablet diameter 3~20mm
#00~#5 Capsule & Softgel		 Tablet diameter 3~20mm
#00~#5 Capsule & Softgel		 Tablet diameter 3~20mm Tablet diameter 3~20mm
#00~#5 Capsule & Softgel
Type 24 Track 12 Track 4 Track 2 Track
Hopper Capacity 34 Liter 2 pcs (Approx,) 40 Liter (Approx,) 10 Liter (Approx,) 5 Liter (Approx,)
Bottle Diameter 30~110mm 30~110mm 30~110mm 30~110mm
Bottle Height adjustment 50~180mm 50~180mm 50~180mm 50~180mm
Air Consumption 150 Liters/min, 6kg/㎠ 100 Liters/min, 6kg/㎠ 20 Liters/min, 6kg/㎠ 10 Liters/min, 6kg/㎠
Optional Item over 180mm high Bottle over 180mm high Bottle over 180mm high Bottle over 180mm high Bottle
