SKY Softgel Machine

Mechanical Softgel Machine

PREVIOUS

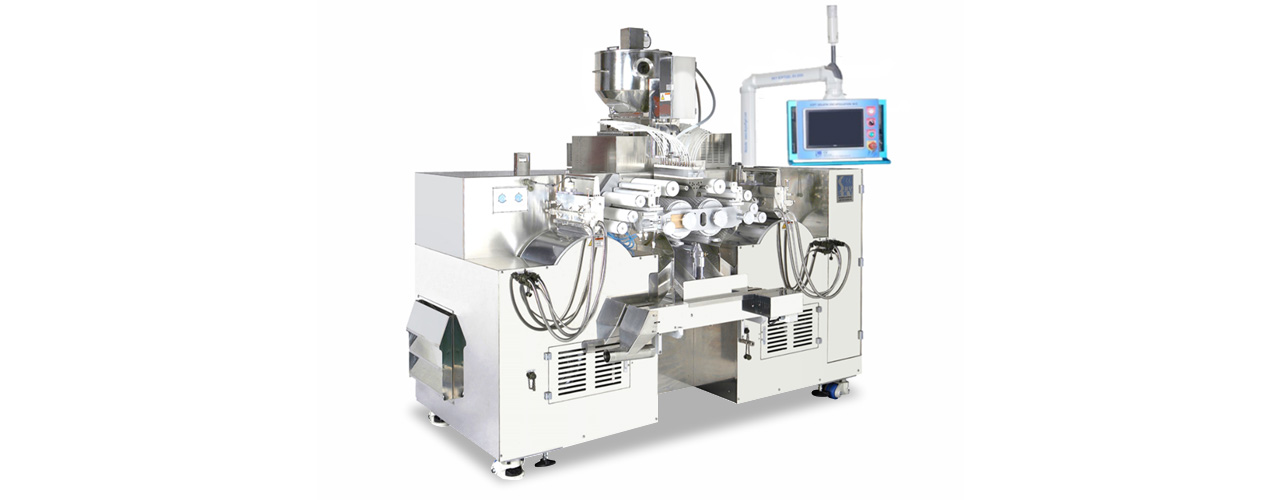

Mechanical Softgel MachineSS-R&D

Max. 3.5 RPM

Die roll size 100mm x 150mm

High Output, Productivity, Outstanding Performance,
Best Quality

Highlights
  • 100% Accuracy Die roll zero-point setting
  • Fill weight adjustment
  • Easy to set Injection timing adjustment
  • Recipe memory system (more than 100,000 recipes)
  • Precise fill weight & Excellent sealing rate



Application & Demo

Mechanical Softgel Machine SS-R&D



Specification
MODEL SS-R&D SS-60T SS-100T SS-300T
RPM 3.5 RPM 3.5 RPM 3.5 RPM 3.5 RPM
Shape Die roll size 100mm(dia) x 150mm(L) 100mm(dia) x 150mm(L) 150mm(dia) x 250mm(L) 200mm(dia) X 300mm(L)
4(inch) X 6(inch) 4(inch) X 6(inch) 6(inch) X 10(inch) 8(inch) X 12(inch)
Oblong 5 35,280 35,280 86,100 173,250
Oblong 9.5 27,300 27,300 75,600 122,430
Oblong 11 26,250 26,250 71,820 115,500
Oblong 14 20,160 20,160 60,480 100,800
Oblong 16 19,320 19,320 58,800 86,940
Oblong 18 18,480 18,480 49,980 85,050
Oblong 20 18,480 18,480 48,510 73,920
Oblong 22 17,640 17,640 47,040 70,560
Oblong 24 16,800 16,800 44,100 67,200
Oval 3 51,030 51,030 137,760 215,460
Oval 5 43,680 43,680 119,700 192,780
Oval 7.5 35,280 35,280 95,550 157,920
Oval 10 32,340 32,340 83,160 138,600
Round 1 70,560 70,560 172,200 277,200
Round 2 65,520 65,520 168,000 267,120
Round 5 46,200 46,200 124,740 203,280
