SKY Multi Counting Machine

Multi Counting Machine SMC-527SQ

PREVIOUS

NEXT

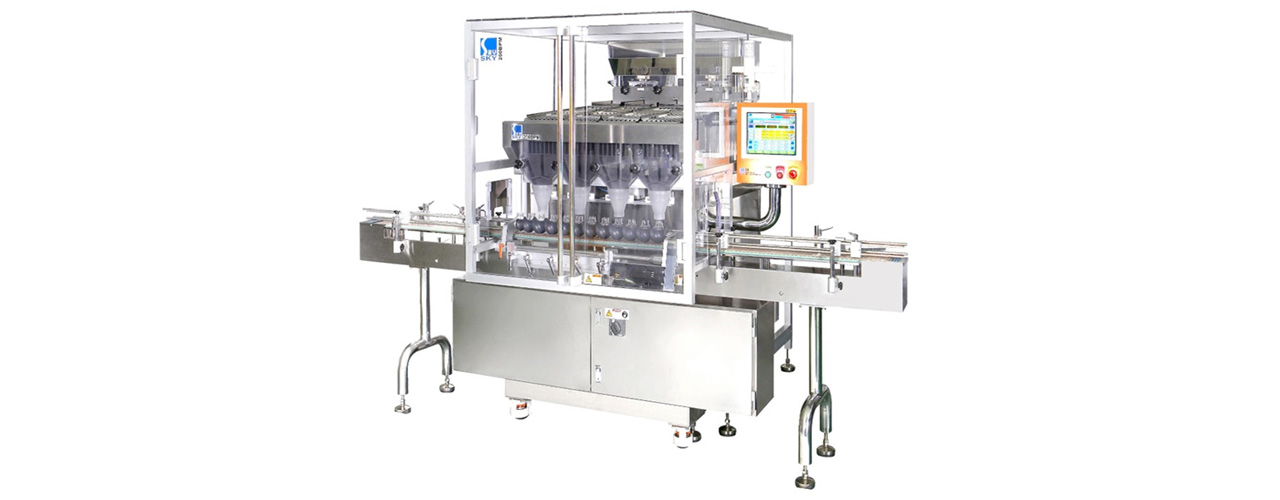

Multi Counting MachineSMC-527SQ

High Speed, 100% Counting Accuracy, Servo Control,
Various bottles available

Highlights
  • Unscrambler – Silica gel Inserter – SMC-527SQ – Cotton Inserter – Rotary Capper– Induction Sealer – Side Labeler
  • Auto Servo driven feed screw for fast and accurate bottle transport and filling
  • Counting any kind of tablet or capsule with 100% accuracy with transparency capsule
  • Filling in any kind of plastic or glass bottle
  • User friendly HMI
  • Modular design allows for quick disassembly without tolls for easy cleaning
  • Can provide Complete line
  • CUSTOM-MADE Spare parts with Cheap price and short lead time

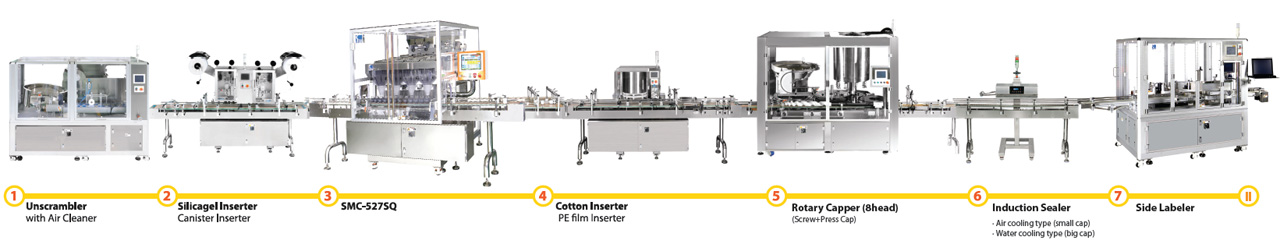

Full Line – 150 BPM
Application & Demo

Multi Counting machine SMC-527SQ for big bottles

Multi Counting machine SMC-527SQ for Small bottles



Specification
MODEL SMC-527SQ SMC-527D SMC-527S
Track Qty 32 (8 X 4H) 24 (12 X 2H) 1224 (12 X 2H)
Head Qty 4 2 1
Max Counting Speed 150 BPM (100 Counts) 120 BPM (100 Counts) 60 BPM (100 Counts)
Contact Material SUS 316L SUS 316L SUS 316L
Dimension 3,000 X 1,837 X 2,053 3,000 X 1,730 X 2,030 2,400 X 1,570 X 2,030
Weight 1,800Kg (Approx,) 1,600Kg (Approx,) 1,000Kg (Approx,)
Required Power 2.5Kw (Approx,) 1.6Kw (Approx,) 1Kw (Approx,)
Electric Spec 220V/380, 50Hz/60Hz, 3PH 220V/380, 50Hz/60Hz, 3PH 220V/380, 50Hz/60Hz, 3PH
Counting Speed Max. 16,000 tablets/min
Max. 150 bottles/min
Max. 12,000 tablets/min
Max. 120 bottles/min
Max. 6,000 tablets/min
Max. 60 bottles/min
Product Size Tablet diameter 3~20mm
#00~#5 Capsule & Softgel
Tablet diameter 3~20mm
#00~#5 Capsule & Softgel
Tablet diameter 3~20mm
#00~#5 Capsule & Softgel
Type 32 Track 24 Track 12 Track
Hopper Capacity 70 Liter (Approx,) 62 Liter (Approx,) 40 Liter (Approx,)
Bottle Diameter 30~110mm 30~110mm 30~110mm
Bottle Height adjustment 50~180mm 50~180mm 50~180mm
Air Consumption 200 Liters/min, 6kg/㎠ 150 Liters/min, 6kg/㎠ 100 Liters/min, 6kg/㎠
Optional Item over 180mm high Bottle over 180mm high Bottle over 180mm high Bottle
