SKY SOFTGEL CO., LTD.

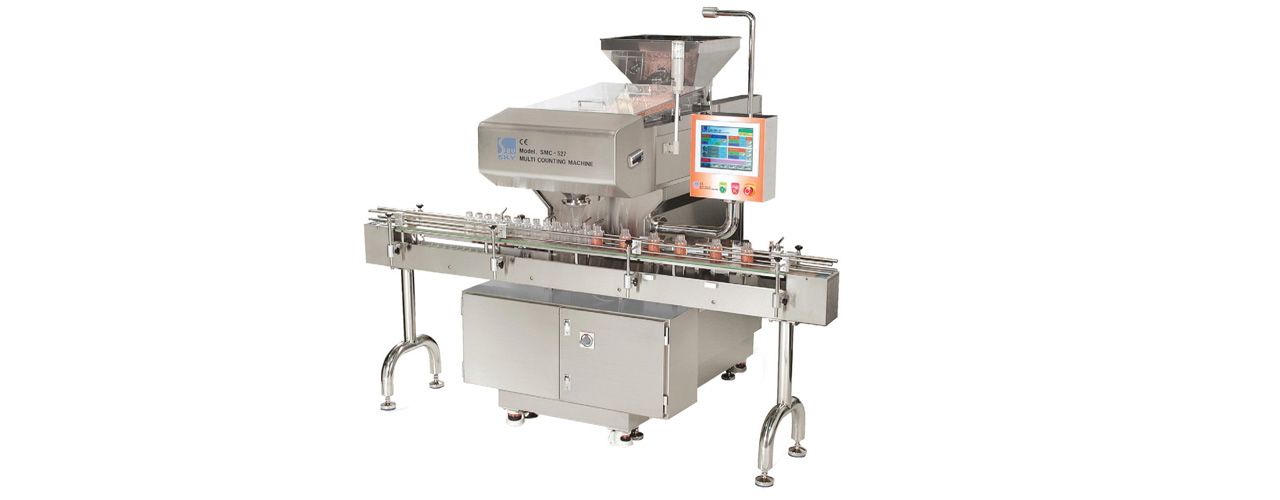

Multi Counting MachineSMC-527S: High Speed, 100% Counting Accuracy, Servo Control,
Various bottles available

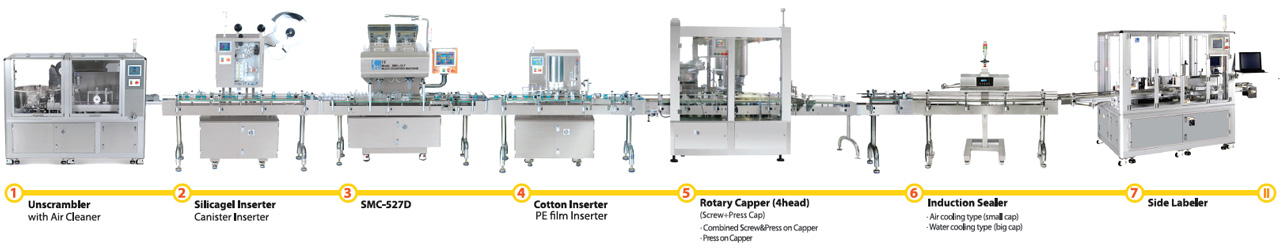

Unscrambler – Silica gel Inserter – SMC-527S – Cotton Inserter – Rotary Capper – Induction Sealer – Side Labeler
Counting any kind of tablet or capsule with 100% accuracy with transparency capsule
Filling in any kind of plastic or glass bottle
User friendly HMI
Modular design allows for quick disassembly without tolls for easy cleaning
Can provide Complete line
CUSTOM-MADE Spare parts with Cheap price and short lead time

MODEL	SMC-527SQ	SMC-527D	SMC-527S
Track Qty	32 (8 X 4H)	24 (12 X 2H)	1224 (12 X 2H)
Head Qty	4	2	1
Max Counting Speed	150 BPM (100 Counts)	120 BPM (100 Counts)	60 BPM (100 Counts)
Contact Material	SUS 316L	SUS 316L	SUS 316L
Dimension	3,000 X 1,837 X 2,053	3,000 X 1,730 X 2,030	2,400 X 1,570 X 2,030
Weight	1,800Kg (Approx,)	1,600Kg (Approx,)	1,000Kg (Approx,)
Required Power	2.5Kw (Approx,)	1.6Kw (Approx,)	1Kw (Approx,)
Electric Spec	220V/380, 50Hz/60Hz, 3PH	220V/380, 50Hz/60Hz, 3PH	220V/380, 50Hz/60Hz, 3PH
Counting Speed	Max. 16,000 tablets/min Max. 150 bottles/min	Max. 12,000 tablets/min Max. 120 bottles/min	Max. 6,000 tablets/min Max. 60 bottles/min
Product Size	Tablet diameter 3~20mm #00~#5 Capsule & Softgel	Tablet diameter 3~20mm #00~#5 Capsule & Softgel	Tablet diameter 3~20mm #00~#5 Capsule & Softgel
Type	32 Track	24 Track	12 Track
Hopper Capacity	70 Liter (Approx,)	62 Liter (Approx,)	40 Liter (Approx,)
Bottle Diameter	30~110mm	30~110mm	30~110mm
Bottle Height adjustment	50~180mm	50~180mm	50~180mm
Air Consumption	200 Liters/min, 6kg/㎠	150 Liters/min, 6kg/㎠	100 Liters/min, 6kg/㎠
Optional Item	over 180mm high Bottle	over 180mm high Bottle	over 180mm high Bottle
