SKY Auto Cartoning Machine

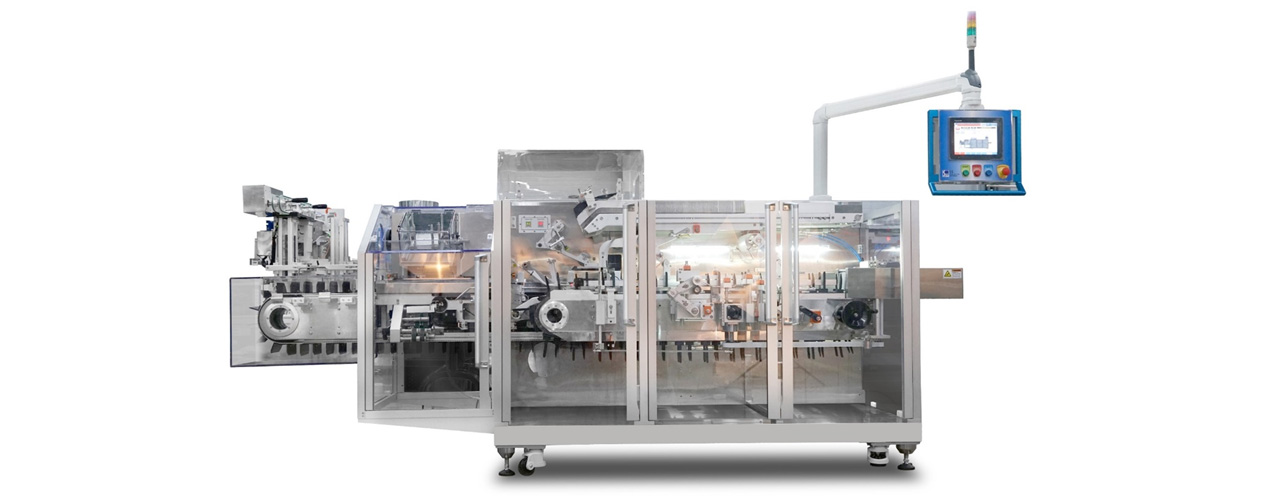

Auto Cartoning Machine SVC-100

NEXT

Auto Cartoning MachineSVC-100

High Speed, Servo Control, Various Options available,
Easy Maintenance

Highlights
  • Built in Balcony Construction : a conception allow the complete separation of mechanical working from the packaging area
  • Stable Cartoning in high speed by specially designed forming
  • Less Noisy & Easy Maintenance
  • Quick size change-over by digital indication modulator
  • Perfect Safety device for operators
  • Two pusher type, Turret pusher type
  • Remote Control System : Easily accessible by PC, Smartphone or Tablet



Application & Demo

Auto Cartoning Machine SVC-100

SMC-527D + SVC-100 Line



Specification
MODEL SVC-100 SVC-200 SVC-300
Output (min) 100 200 300
Carton type Tuck-in or Hotmelt Tuck-in or Hotmelt Tuck-in or Hotmelt
Operating mode Intermittent Continuous Continuous
Carton
size
(mm)		 Width [A] 25 - 110 mm 30 - 90 mm 30 - 90 mm
Height [B] 15 - 70 mm 15 - 50 mm 15 - 50 mm
Length [C] 70 - 160 mm 70 - 140 mm 70 - 140 mm
Dimension
(L x W x H)		 3,840 x 1,550 x 2,300 4800 x 1830 x 1850 5100 x 1830 x 1850
Weight 1800 Kg 4000 Kg 4300 Kg
Required Power 3.0 Kw + option 5.5 Kw + option 6.0 Kw + option
Option Date coder(Inkjet or Embossion)
Hot melt applicator
Leaflet loading device (Magazine, Leaflet folder)
Autoloading device (PTP, Bottle, Tube, Pillow etc)
