Auto Servo AFS Softgel Machine

PREVIOUS

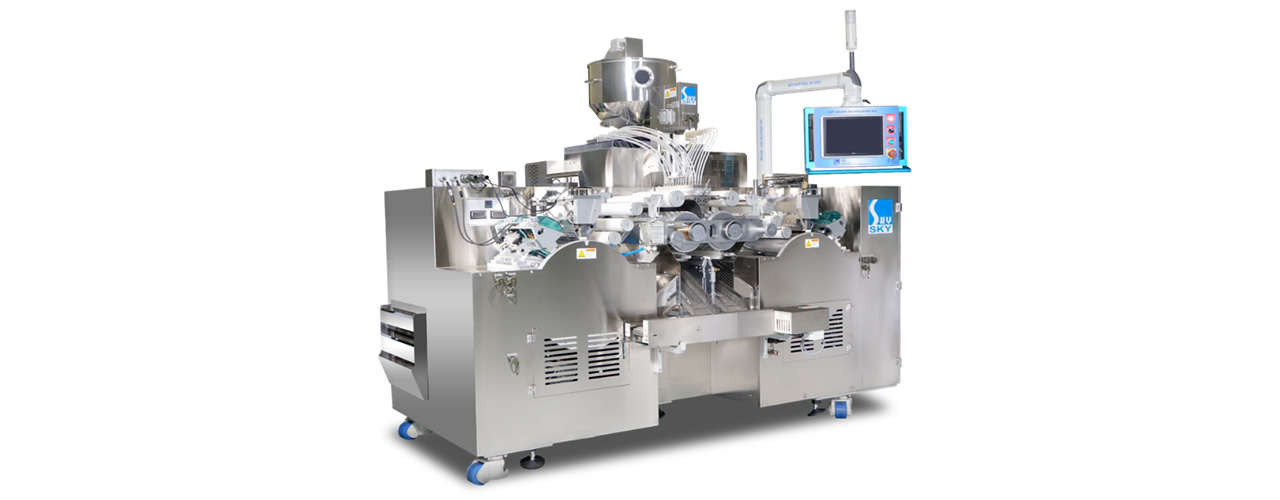

Auto Servo AFS Softgel MachineAFS SV-R&D

Max. 3 RPM

Die roll size 100mm x 150mm

High Output, Productivity, Outstanding Performance,
Best Quality, Automatic System

Highlights
  • Auto Die roll zero-point control
  • Auto fill weight adjustment control
  • Auto Injection timing adjustment control
  • Auto recipe memory system (more 100,000 recipes)
  • Auto production parameter memory system
  • Auto servo motor driving system-Germany
  • No need time gear
  • Precise fill weight
  • Excellent sealing rate
  • Huge output (3 times more than old mechanical machine)




Specification
MODEL AFS SV-R&D AFS SV-600 AFS SV-1000 AFS SV-3000 AFS SV-5000
RPM 3 RPM 3 RPM 3 RPM 3 RPM 3 RPM
Shape Die roll size 100mm(dia) x 150mm(L) 100mm(dia) x 150mm(L) 150mm(dia) x 250mm(L) 200mm(dia) X 300mm(L) 200mm(dia) X 360mm(L)
4(inch) X 6(inch) 4(inch) X 6(inch) 6(inch) X 10(inch) 8(inch) X 12(inch) 8(inch) X 14(inch)
Oblong 5 8,280 20,700 56,700 93,060 118,440
Oblong 9.5 7,920 15,840 47,520 79,200 95,040
Oblong 11 7,560 15,120 44,640 75,600 90,720
Oblong 14 7,200 14,400 37,800 64,800 79,200
Oblong 16 6,840 10,260 36,540 56,160 70,200
Oblong 18 6,840 10,260 30,240 54,720 68,400
Oblong 20 6,480 9,720 30,240 53,280 66,600
Oblong 22 6,120 9,180 28,080 50,400 63,000
Oblong 24 6,120 9,180 27,000 48,960 61,200
Oval 3 7,560 26,460 80,640 131,580 162,540
Oval 5 7,200 25,200 70,200 108,000 136,800
Oval 7.5 6,480 19,440 60,480 93,240 113,220
Oval 10 6,120 18,360 51,480 81,900 100,800
Oval 12 5,760 14,400 45,000 77,220 89,100
Round 1 8,280 41,400 119,700 190,440 231,840
Round 2 7,560 37,800 103,680 170,280 208,980
Round 5 6,480 25,920 72,900 116,640 142,560
