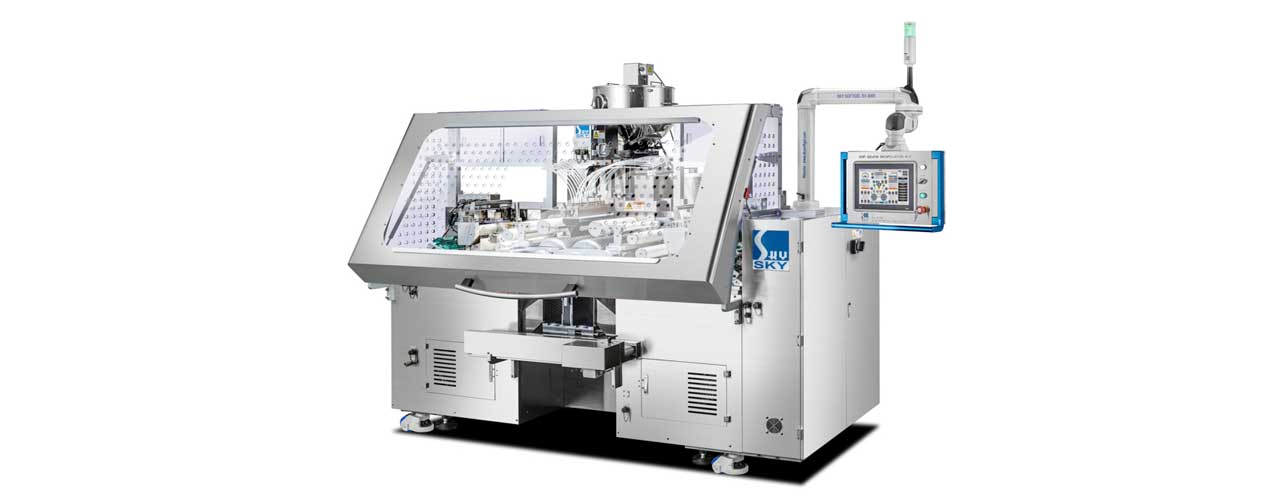

Auto Servo Softgel MachineSV-3000

Max. 6 RPM

Die roll size 200mm x 300mm

High Output, Productivity, Outstanding Performance,
Best Quality, Automatic System

Highlights
  • Auto Die roll zero-point control
  • Auto fill weight adjustment control
  • Auto Injection timing adjustment control
  • Auto recipe memory system (more 100,000 recipes)
  • Auto production parameter memory system
  • Auto servo motor driving system-Germany
  • No need time gear
  • Precise fill weight
  • Excellent sealing rate
  • Huge output (3 times more than old mechanical machine)



Application & Demo

Auto Servo Softgel Machine SV-3000



Specification
MODEL SV-R&D SV-600 SV-1000 SV-2000 SV-3000 SV-4000 SV-5000
RPM 6 RPM 6 RPM 6 RPM 6 RPM 6 RPM 6 RPM 6 RPM
Shape Die roll size 100mm(dia) x 150mm(L) 100mm(dia) x 150mm(L) 150mm(dia) x 250mm(L) 180mm(dia) x 300mm(L) 200mm(dia) X 300mm(L) 180mm(dia) x 360mm(L) 200mm(dia) X 360mm(L)
4(inch) X 6(inch) 4(inch) X 6(inch) 6(inch) X 10(inch) 7(inch) X 12(inch) 8(inch) X 12(inch) 7(inch) X 14(inch) 8(inch) X 14(inch)
Oblong 5 20,160 60,480 147,600 220,320 237,600 275,400 297,000
Oblong 9.5 18,720 46,800 129,600 190,080 209,880 224,640 248,040
Oblong 11 18,000 45,000 123,120 178,200 198,000 210,600 234,000
Oblong 14 17,280 34,560 103,680 154,800 172,800 185,760 207,360
Oblong 16 16,560 33,120 100,800 136,080 149,040 166,320 182,160
Oblong 18 15,840 31,680 85,680 132,840 145,800 162,360 178,200
Oblong 20 15,840 31,680 83,160 115,200 126,720 158,400 174,240
Oblong 22 15,120 30,240 80,640 109,400 120,960 136,800 151,200
Oblong 24 14,400 28,800 75,600 103,680 115,200 129,600 144,000
Oval 3 19,400 87,480 236,160 328,320 369,360 397,440 447,120
Oval 5 18,720 74,880 205,200 304,560 330,480 372,240 403,920
Oval 7.5 17,280 60,480 163,800 247,680 270,720 294,120 321,480
Oval 10 15,840 55,440 142,560 216,000 237,600 259,200 285,120
Oval 12 15,120 45,360 133,920 191,520 211,680 232,560 257,040
Round 1 20,160 120,960 295,200 440,640 475,200 514,080 554,400
Round 2 18,720 112,320 288,000 414,720 457,920 483,840 534,240
Round 5 15,840 79,200 213,840 308,880 348,480 379,080 427,680
